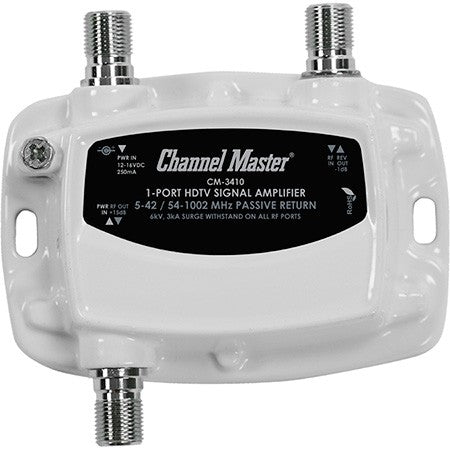

Channel Master CM3410 - Ultra Mini 1 Way 15dB Distribution Amplifier

Channel Master CM3410 - Ultra Mini 1 Way 15dB Distribution Amplifier

Channel Master

  • $4799


1-port signal distribution amplifier

Benefits
  • Miniature size for space-saving installations
  • Single output port to connect to 1 TV
  • Professional grade performance - increases the overall signal strength for distribution throughout the home
  • Powder coated and weather-sealed housing for superior corrosion protection
  • Excellent surge withstand capability
  • Offers return path for cable modem applications
  • Supports both analog and digital broadcast signals
  • Patented Digital Seizure Mechanism (DSM) for superior center conductor retention, surface area contact and electrical performance

The Ultra Mini 1 distribution amplifier will boost TV signals, increasing the overall signal strength for distribution throughout the home. The Ultra Mini 1 has a single output port and can be used in HDTV, CATV, off-air, analog and digital RF distribution applications where high performance and reliability are required.

Tech specs

  • Forward frequency range: 54 to 1002 MHz
  • Return path frequency range: 5 to 42 MHz
  • Gain: 15dB
  • Max output level: 25 dBmV
  • Max input level: 10 dBmV
  • Passive return: -1.0 dB
  • Operating temperature: -40 C to +60 C
  • Connector: F-type


Box Contents

  • Ultra Mini 1 distribution amplifier
  • Power adapter (power inserter not included)
  • Coaxial cable
  • User Guide
